AgXeed B.V.
AgBot-2.055W4


Type of mounting for working tool • Front hydraulics Cat.2, Rear hydraulics Cat.3
Hydraulic connections • F3x double-acting with max. 85l/min
High voltage electrical connection
Crops • All
Browser application
Working capacity (ha/h) • 3










The all-rounder among the AgBots: A robot with a wide range of applications
From lighter tillage to sowing, to maintenance measures such as spraying or mechanical weed control. In addition, the four-wheeler can be used in the field of grassland management. An adjustable track width complements the application possibilities in the field of special crops and vegetable cultivation.

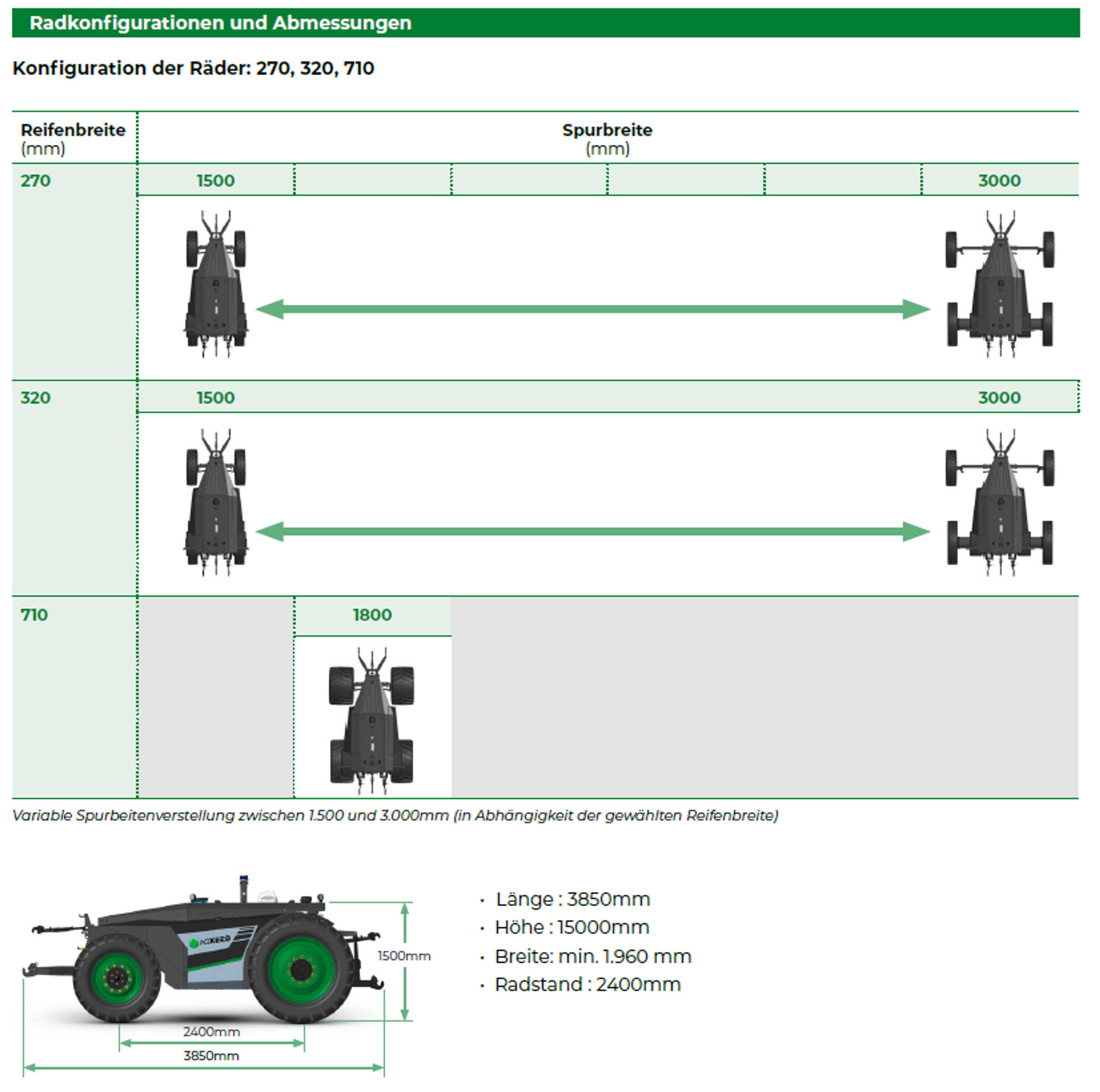

Machine size
- Minimum length: 3850 mm
- Height: 1500 mm
- Width: min. 1960 mm
- Radius distance: 2400 mm
- Tare weight: 3.2
Wheel configuration
- Wheel configurations starting at 270, 320, 710
- Variable width adjustment between 1500 and 2250 mm
Security features
Safety precautions
Obstacle detection
AgXeed-Portal
The AgXeed portal manages your entire operating cycle: fields and tasks, as well as your complete machine fleet.
You will appreciate the well-structured dasboard: you will find your plots logically sorted by farm, field and subfields. A descending user management lets you decide who is allowed to connect to your digital farm. The digital barn houses your combinations of AgBots with attachments including their specific parameters.
Once the combinations are created, book them to a specific operation and the task is created. All tasks can be saved for later execution or sent immediately to the combination for execution. Once at the job site, start the operation with a safe and approved remote control. Once started, everything runs automatically. In the meantime, if you want to check on your machine, just turn on the camera remotely and see what's going on. That's what we call autonomy.
Manage, set up, control and collect data received from AgBots in one application from anywhere:


Radkonfiguration
- Radkonfigurationen beginnend bei 270, 320, 710
- Variable Breitenverstellung zwischen 1500 und 2250 mm
Sicherheitsfeatures
Geofence System
Not-Aus Tasten rund um die Maschine
Akustische Warnsignale
Kontrollleuchten


Hindernisserkennung




Attributes
Sensors
Existing sensors
- LIDAR sensor on the top of the machine
- Ultrasonic sensors integrated into the safety bumper
- Radar sensors integrated into the safety bumper
- Touch-sensitive bumper integrated in the safety bumper
Support
Phone support
Mail support
On-site support
Remote maintenance
Software
Browser application
Android-App
iOS-App
Place of data storage
Tools
Type of mounting for working tool
Maximum lifting force (kg)
Standard three-point
Hydraulic connections
Power take-off (PTO, PTO)
High voltage electrical connection
Crops
Areas of application
- Device: 160cm bed spade
- Speed: 5 km/h
- PTO speed: 540 rpm
- Fuel: 4 l/h
- Soil: Light sand
- Topography: flat
- Implement: 3m power harrow with 3m mechanical seed drill
- Speed: up to 5 km/h
- Fuel: 6 l/h
- Soil: Loess
- Topography: slight slope
- Device: 4-row mechanical corn weeder
- Speed: up to 4 km/h
- Fuel: 3 l/h
- Soil: Sand
- Topography: flat
Working capacity (ha/h)
Load-Sensing
Locomotion
Electric drive
Diesel drive
Other form of drive
Power (kW)
Speed (km/h)
Tire options
Track width (mm)
Ground clearance (mm)
Weight (kg)
Transport system
Legal requirements given
Company


AgXeed B.V.
Niederlande
Founding year:
2018
